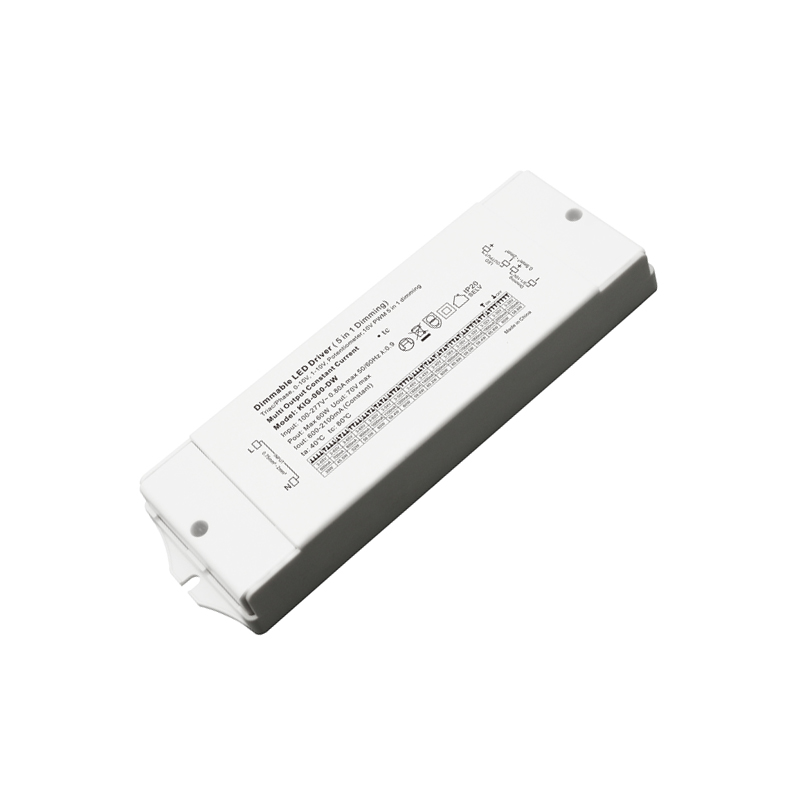

10-60W Constant Current Dip Switch Triac & 0/1-10V Dimmable Power Supply
Model: R-SC-KIG-XXX
| Input Valtage |
100-277VAC |
|||||||||||||||
| Input Frequency |
47~63 Hz |
|||||||||||||||
| Output Voltage | 3-65V | 3-65V | 3-65V | 3-65V | 3-60V | 3-55V | 3-50V | 3-46V | 3-43V | 3-40V | 3-38V | 3-35V | 3-33V | 3-32V | 3-30V | 3-29V |
| Output Current | 600mA
○○○○ |
700mA
●○○○ |
800mA
○●○○ |
900mA
●●○○ |
1000mA
○○●○ |
1100mA
●○●○ |
1200mA
○●●○ |
1300mA
●●●○ |
1400mA
○●●● |
1500mA
●○○● |
1600mA
○●○● |
1700mA
●●○● |
1800mA
○○●● |
1900mA
●○●● |
2000mA
○●●● |
2100mA
●●●● |
| Output Power |
60W |
|||||||||||||||
| Output Voltage | 3-65V | 3-65V | 3-65V | 3-65V | 3-65V | 3-65V | 3-65V | 3-62V | 3-57V | 3-50V | 3-45V | 3-40V | 3-37V | 3-34V | 3-31V | 3-29V |
| Output Current | 300mA
○○○○ |
350mA
●○○○ |
400mA
○●○○ |
450mA
●●○○ |
500mA
○○●○ |
550mA
●○●○ |
600mA
○●●○ |
650mA
●●●○ |
700mA
○●●● |
800mA
●○○● |
900mA
○●○● |
1000mA
●●○● |
1100mA
○○●● |
1200mA
●○●● |
1300mA
○●●● |
1400mA
●●●● |
| Output Power | 40W | |||||||||||||||
| Output Voltage | 3-42V | 3-42V | 3-42V | 3-42V | 3-40V | 3-36V | 3-33V | 3-29V |
| Output Current | 250mA
○○○ |
350mA
●○○ |
400mA
○●○ |
450mA
○○● |
500mA
● ●○ |
550mA
●○● |
600mA
○●● |
700mA
●●● |
| Output Power | 20W | |||||||
| Output Voltage | 3-42V | 3-42V | 3-42V | 3-40V | 3-33V | 3-29V | 3-25V | 3-22V |
| Output Current | 100mA
●●● |
150mA
○●● |
200mA
●○● |
250mA
○○● |
300mA
● ●○ |
350mA
○●○ |
400mA
●○○ |
450mA
○○○ |
| Output Power | 10W | |||||||
