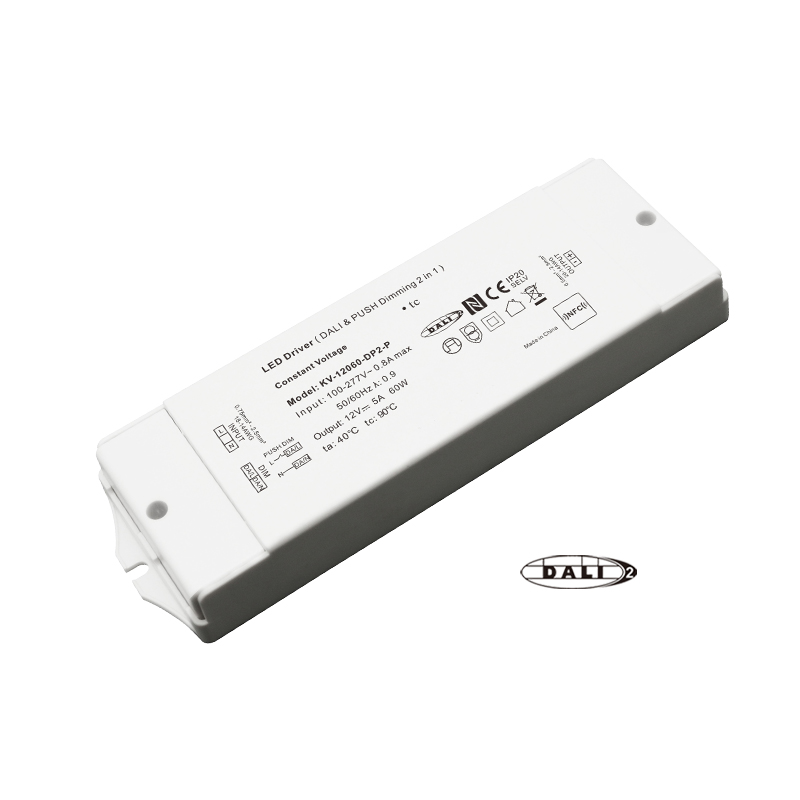

30W 60W 12V 24V 36V 48V DALI2 DT6 CCT & Dim Constant Voltage Dimmable LED driver
DiiA Alliance Member, Alliance Certified
Model No. R-SC-KV-XXXXXD
No load limitation
Dimming Range: 0-100%
NFC setting address and fine-tuning output voltage.
Certifications: ENEC, CE, RoHS
Input Voltage: 100-277V
Input Frequency: 47-63 Hz
Output Voltage: 12V / 24V /36V /48V
Output Current: 2.5A -5A/ 1.25-2.5A /0.83A-1.67A /0.63A– 3.13A
Dimming Method: DALI-2 & Dim
Output Power: 30W 36W
Plug standard available: Europe Standard, American Standard, Britain Standard, Australia Standard.
Output interface available: 2.5×0.7, 3.5×1.35, 4.0×1.7, 5.5×2.1, 5.5×2.5, type C, elbow, android.
AC Socket available: 8 style, Y style, Cross style.
