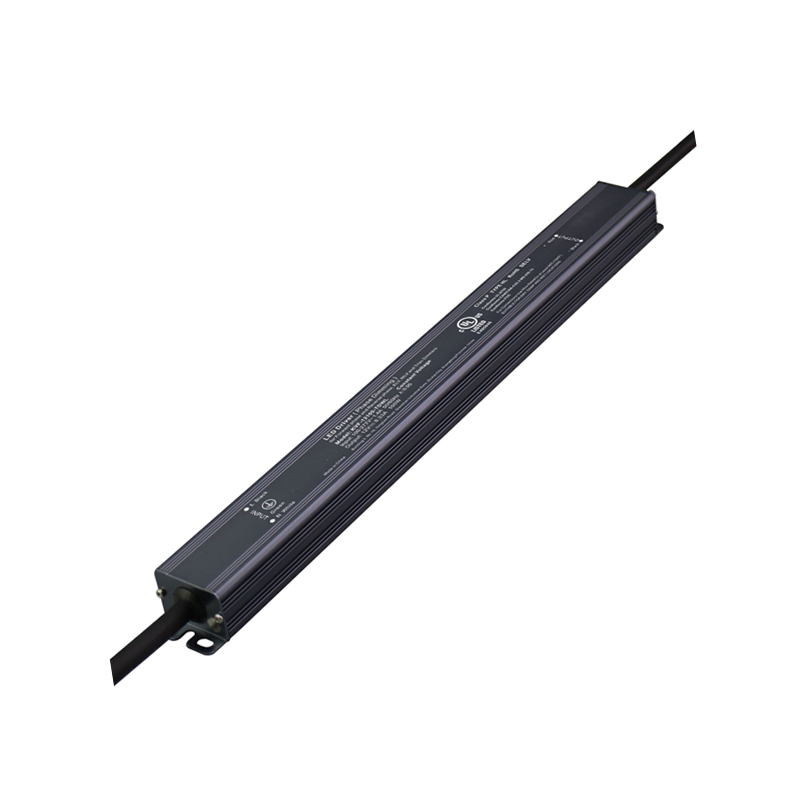

CE Certified Slim 30-150W Constant Voltage Triac Dimmable Power Supply PWM Output
Model: R-SC-KVF-12xxx
High power factor, PWM output
Dimming range: 0-100%
Certifications: TUV-CE, CB, Pending, SAA, RoHS
Specifications:
Input Voltage: 200-240V
Input Frequency: 47-63 Hz
Output Voltage: 12V/ 24V
Output Current: 2.5-12.5A (for 12V) /1.25-6.25A (for 24V)
Dimming Methods: Triac (compatible with leading and trailing edge)
Output Power: 30-150W
H05RN-F 3*1.0mm2 (brown L, blue N, yellow green G)
H05RN-F 2*1.0mm2 (red V+, black V-)
